See below the Condenser core Diagram for 5.4L Engine
To remove condenser core front bumper has to be removed.

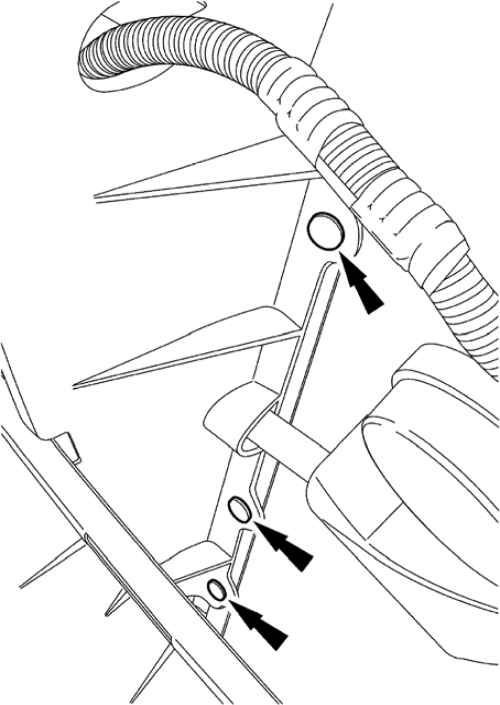

There are pin-type retainers that you have take out,then remove both right and left side Air deflectors,this will let the condenser core to come apart
Detaching the condenser core Shown below:----
